Modern Web Application Deployment on AWS

7 min read

Project Overview

This project demonstrates a comprehensive cloud-native approach to deploying a full-stack web application using modern DevOps practices. The application features an Angular frontend hosted on AWS S3, with a Spring Boot backend running on Amazon EKS (Elastic Kubernetes Service), and data persistence managed through Amazon RDS.

Repositories Involved

Architecture

Infrastructure Components

  • Frontend: Angular application hosted on AWS S3
  • Backend: Spring Boot application deployed on Amazon EKS
  • Database: MySQL on Amazon RDS
  • CI/CD: Jenkins pipelines for automated deployment

Technology Stack

  • Frontend: Angular, HTML, CSS, JavaScript
  • Backend: Spring Boot (Java)
  • Database: MySQL
  • Infrastructure: AWS (S3, EKS, RDS)
  • DevOps Tools: Jenkins, Docker, Kubernetes, Terraform
  • Version Control: Git with feature branch workflow

Key Implementation Highlights

Infrastructure as Code

The project utilizes Terraform to provision and manage the AWS infrastructure, enabling reproducible deployments and infrastructure version control.

Containerized Backend

The Spring Boot application is containerized using Docker and deployed to Kubernetes, providing scalability and resilience.

Automated CI/CD Pipelines

Separate Jenkins pipelines handle the build and deployment processes for both frontend and backend components:

  • Backend pipeline: Code pull, Maven build, Docker image creation, and Kubernetes deployment
  • Frontend pipeline: Code pull, npm build, and S3 deployment

Branching Strategy

The project implements a structured branching strategy with feature, development, and main branches to support collaborative development and controlled releases.

Deployment Process

  1. Infrastructure provisioning with Terraform
  2. Database initialization and schema setup
  3. Backend service deployment to Kubernetes
  4. Frontend application build and deployment to S3
  5. Configuration of network connectivity between services

Project Benefits

  • Scalability: Kubernetes orchestration allows for easy scaling of backend services
  • Cost Efficiency: Serverless frontend hosting minimizes infrastructure costs
  • Automation: CI/CD pipelines reduce manual deployment effort and potential errors
  • Maintainability: Separation of concerns with distinct repositories for frontend and backend
  • Resilience: Load-balanced backend services ensure high availability

Project Workflow

Frontend and backend will have their own seperate repository and pipelines. and both pipelines should be executed with jenkins.

Step 1: Launch Infra with Terraform

Clone this repo either in your local or ec2 instance where terraform is installed and setuped.

git clone https://github.com/srngx/project-infra

Note: you can edit the files to give your own unique bucket name and can change other resources name.

terraform apply --auto-approve

This will launch eks cluster, RDS db and S3 bucket.

Step 2: Import the database into RDS db.

After 15 resources gets created successfully you can import the database into newly created RDS db instance.

git clone https://github.com/srngx/project-infra.git

Here you can find springbackend.sql file import it to database

mysql -h <db-endpoint> -u admin -p springbackend < springbackend.sql

password would be Redhat123

Login to database to Verify if the database is successfully imported

mysql -h <db-endpoint> -u admin -p

show databases;
use springbackend;
show tables;

Step 3: Create Repository for Project backend

  1. Goto github.com and create new repository for storing backend files

  2. upload the backend file from this repository to yours https://github.com/srngx/project-backend.git

    after pushing code to main in your github repo

  3. Create two new branches in your github repo

    • dev branch
    • feature branch switch to feature branch and create new file Dockerfile
FROM openjdk:17-jdk-slim
COPY target/*.jar /opt
EXPOSE 8080
CMD java -jar /opt/spring-backend-v1.jar

Create new Directory deploy and put kubernetes manifests files deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: backend-app
  labels:
    app: backend-app
spec:
  selector:
    matchLabels:
      app: backend-app
  replicas: 2
  template:
    metadata:
      labels:
        app: backend-app
    spec:
      containers:
        - name: backend-app
          image: <your-dockerhub-repo-name>/spring-backend:latest
          ports:
            - containerPort: 8080

services.yaml

apiVersion: v1
kind: Service
metadata:
  name: backend-app
spec:
  selector:
    app: backend-app
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  type: LoadBalancer

and lastly create pipeline.groovy in root of repo

pipeline {
    agent any
    stages {
        stage ('code-pull') {
            steps {
                git branch: 'dev', url: 'https://github.com/<your-username>/project-backend.git'
            }
        }
        stage ('code-Build') {
            steps {
                sh 'mvn clean package'
            }
        }
        stage ('Deploy-k8s') {
            steps {
                sh '''
                    docker build . -t archsarangx/spring-backend:latest
                    docker push <your-docker-repo>/spring-backend:latest
                    docker rmi <your-docker-repo>/spring-backend:latest
                    kubectl apply -f ./deploy/
                '''

            }
        }

    }
}

and push to code to feature branch In github create pull request to merge the feature branch into dev branch accept the pull request

Step 4: Install Prerequisitics

Install maven

sudo apt install maven -y

Install and configure Kubectl

curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"
sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl

Install docker

sudo apt install docker.io -y
sudo systemctl enable --now docker

Install aws-cli

sudo apt install unzip -y
curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
unzip awscliv2.zip
sudo ./aws/install

Configure aws-cli

aws configure --profile <yourprofilename>

Create aws cli user from aws web console and add ID and secret key

Update Kubeconfig

aws eks update-kubeconfig --name <your-cluster-name> --region your-region --profile <your aws profile name>

Now after all these dotfiles created in home in order to jenkins able to use them we should move them to jenkins user directory

Move all config files to jenkins directory

cp -R .aws .kube /var/lib/jenkins

Give Jenkins user ownership to directory and all subfolders

chown -R jenkins:jenkins /var/lib/jenkins

and add jenkins user to docker group

gpasswd -a jenkins docker

Step 5: Start Jenkins Server in EC2

Launch Ec2 instance for our jenkins server here all our programs (kubectl, maven, jenkins, aws-cli, java) will be configured

Launch EC2 install of following specifications:

  • Ram: 8GB
  • Storage: 40 GB
  • CPU: at least 2

This could be t2.large

Install Jenkins:

Install java-17

apt install openjdk-17-jdk -y

Install Jenkins

sudo wget -O /usr/share/keyrings/jenkins-keyring.asc \
  https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key
echo "deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc]" \
  https://pkg.jenkins.io/debian-stable binary/ | sudo tee \
  /etc/apt/sources.list.d/jenkins.list > /dev/null
sudo apt-get update
sudo apt-get install jenkins

Launch Jenkins Service

systemctl enable --now jenkins

This will enable the jenkins service and start it.

Visit the jenkins server https://<ec2-instance-ip>:8080 (make sure you enable port 8080 in security groups for outside access)

Add some plugins in jenkins

  • pipeline plugin
  • stageview plugin

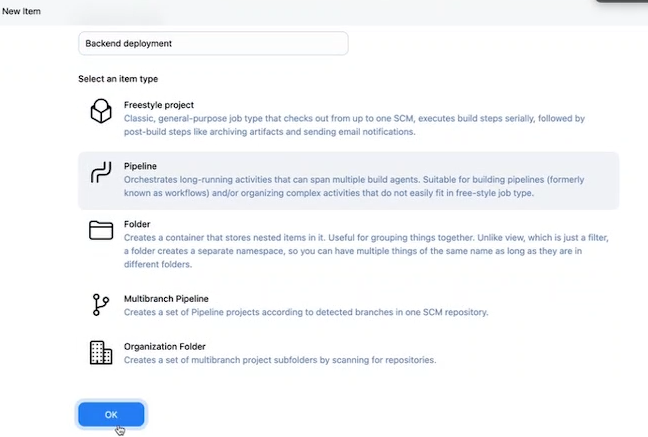

Create new Item in jenkins and create pipeline for backend deployment

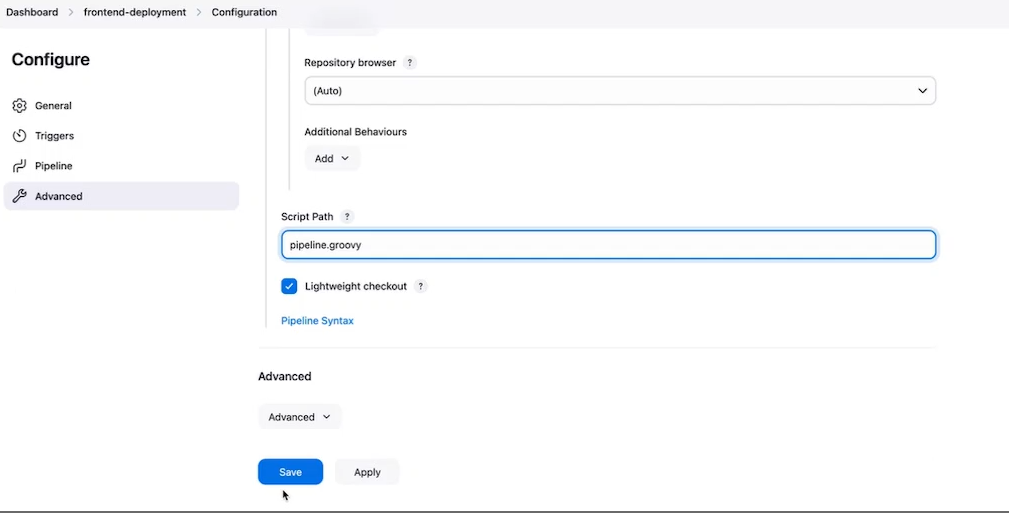

for Definition select Pipeline Script from SCM add repository url for github project backend repo that you have created give the name of the branches as dev and scriptpath be pipeline.groovy save and apply and try to run the file

ofcourse you gonna get error in pipeline because we havent added database endpoint in backend source code yet.

Database connection In order to make communication between backend and database you need to establish connection by providing credential of database to backed source code.

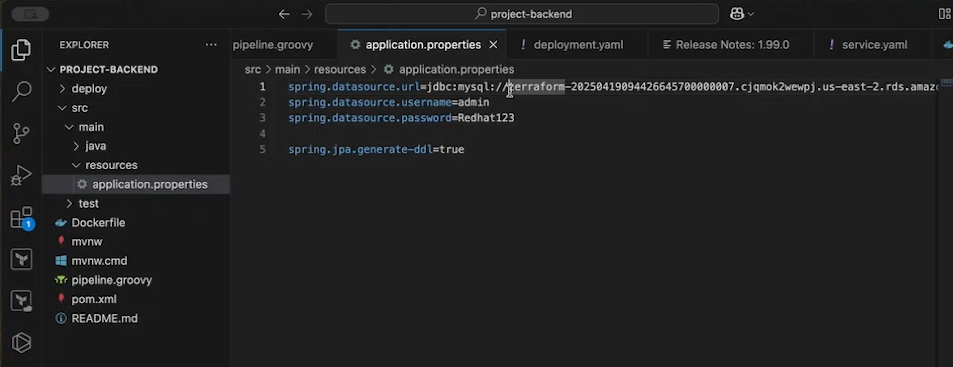

Locate the database connection file Its in src/main/resources/application.properties make appropriate changes here and push the latest code to github repository and rerun the pipeline.

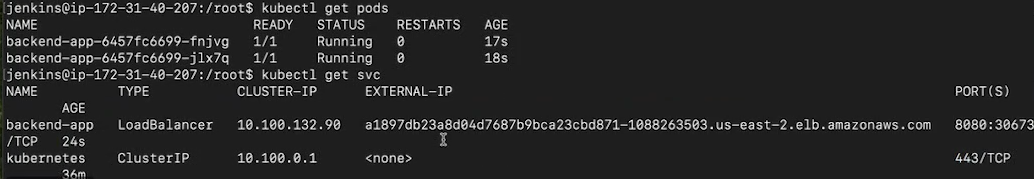

After successful running of pipeline check for pods and endpoint of loadbalancer to access the backend url

kubectl get pods
kubectl get svc

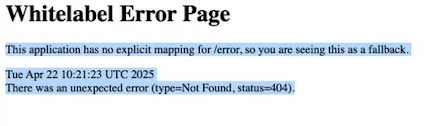

That url should show this whitelabel error it means its working correctly.

Step 6: Frontend Deployment

We are going to use same git branch strategy for frontend deployment as well.

Create a new repo in github for frontend. copy the source code from here

git clone https://github.com/srngx/project-frontend.git

also we need to install nodejs and angular in instance.

sudo apt install nodejs npm -y
sudo npm install -g @angular/[email protected]

push the code into github repo create two branches

  • dev
  • feature

now create a pipeline file in this repo create new file pipeline.groovy

pipeline {
	agent any
	stages {
		stage ('code-pull') {
			steps {
				git branch: 'dev', url: 'https://github.com/your-username/project-frontend.git'
			}
		}
		stage('code-build') {
			steps {
				sh '''
					npm install
					ng build
				'''
			}
		}
		stage('code-deploy') {
			steps {
				withCredentials([aws(accessKeyVariable: 'AWS_ACCESS_KEY_ID', credentialsId: 'aws-creds', secretKeyVariable: 'AWS_SECRET_ACCESS_KEY')]) {
	sh '''
		aws s3 cp --recursive dist/angular-frontend s3://your-bucket-name
	'''
}


			}
		}
	}
}

Step 7: Configure and deploy

Add loadbalancer endpoint in source code

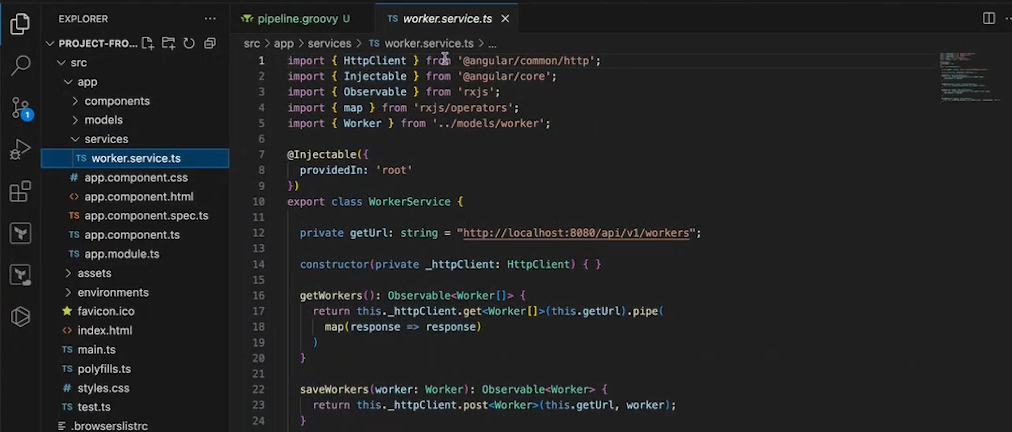

In your frontend code locate /src/app/services/worker.service.ts and in private getUrl: string = "http://localhost:8080/api/v1/workers"; and your loadbalancer endpoint "http://<url-loadbalancer-endpoint>:8080/api/v1/workers"; like this way.

save changes and push to the repo in dev branch

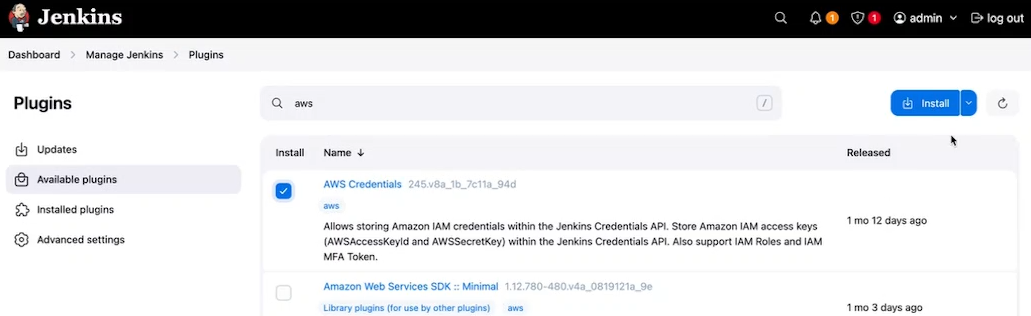

Add aws credential in jenkins Add aws credential plugin

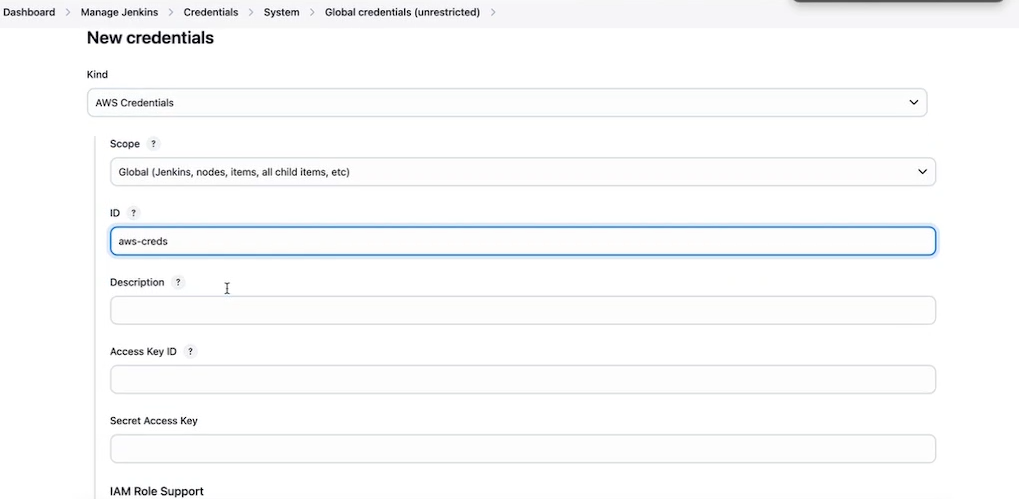

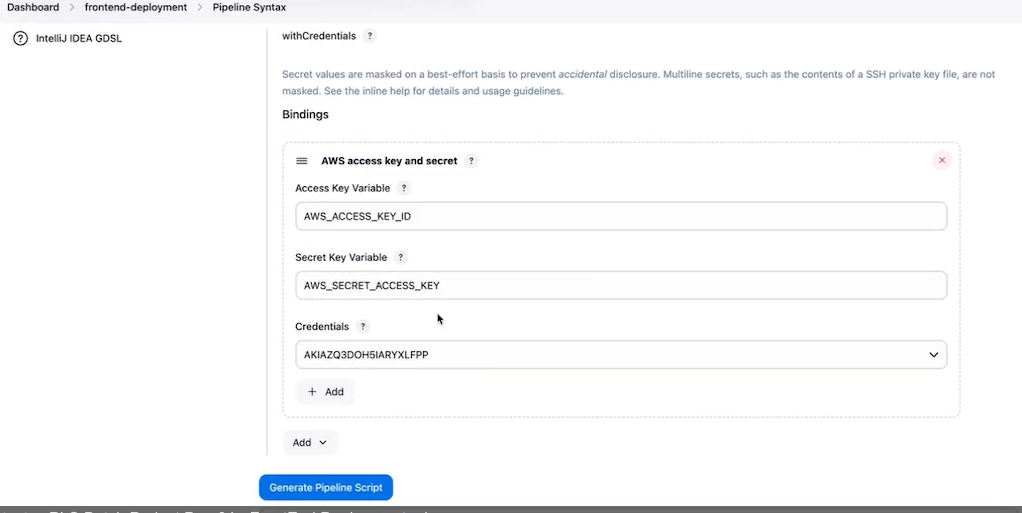

Goto manage and add global credentials Now in generate syntax you can get aws credential option

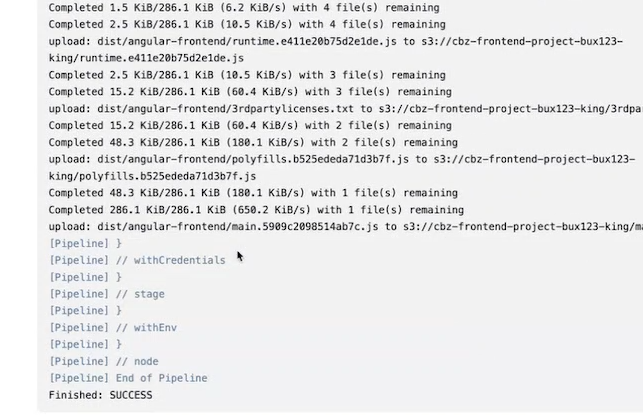

Create pipeline and deploy Now pipeline should be finished successfully.

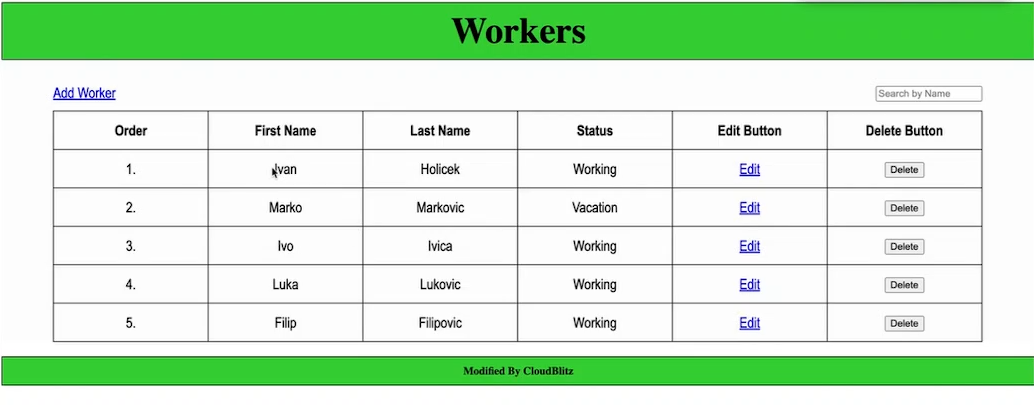

Access s3 bucket url it should see page like this

You can try adding removing data from table and it should reflect in mysql database as well.

Thanks for Reading!
